Handbooks for shipyard engineers and workers. Describing access and ergonomic requirements.

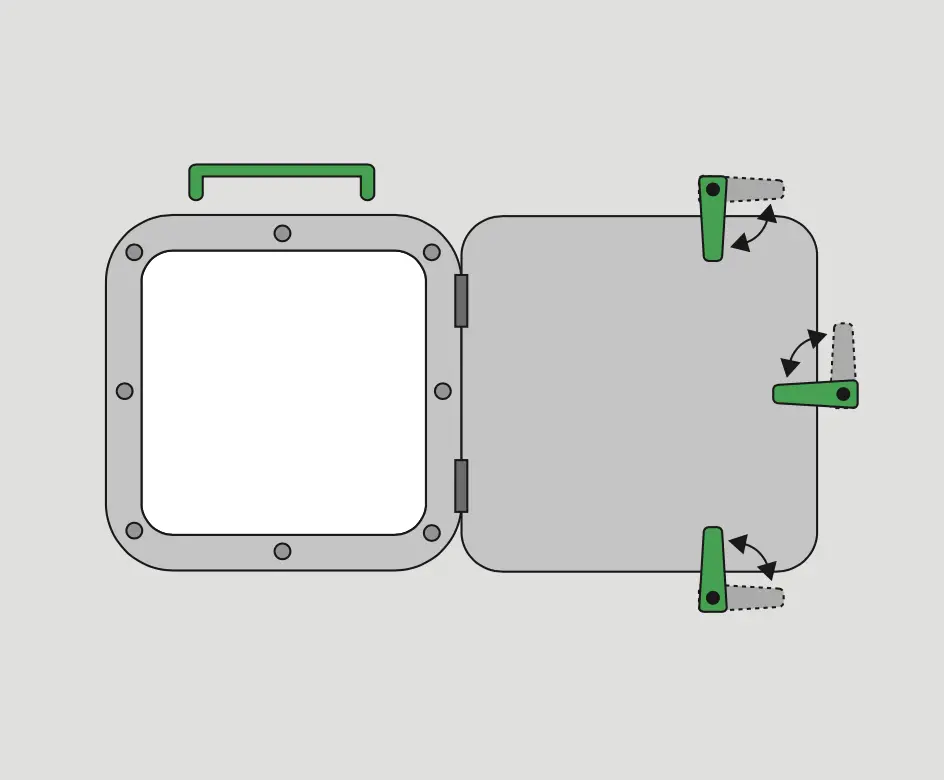

Vertical inspection hatches shall be side-hinged.

It shall be possible to secure hatches in an open position.

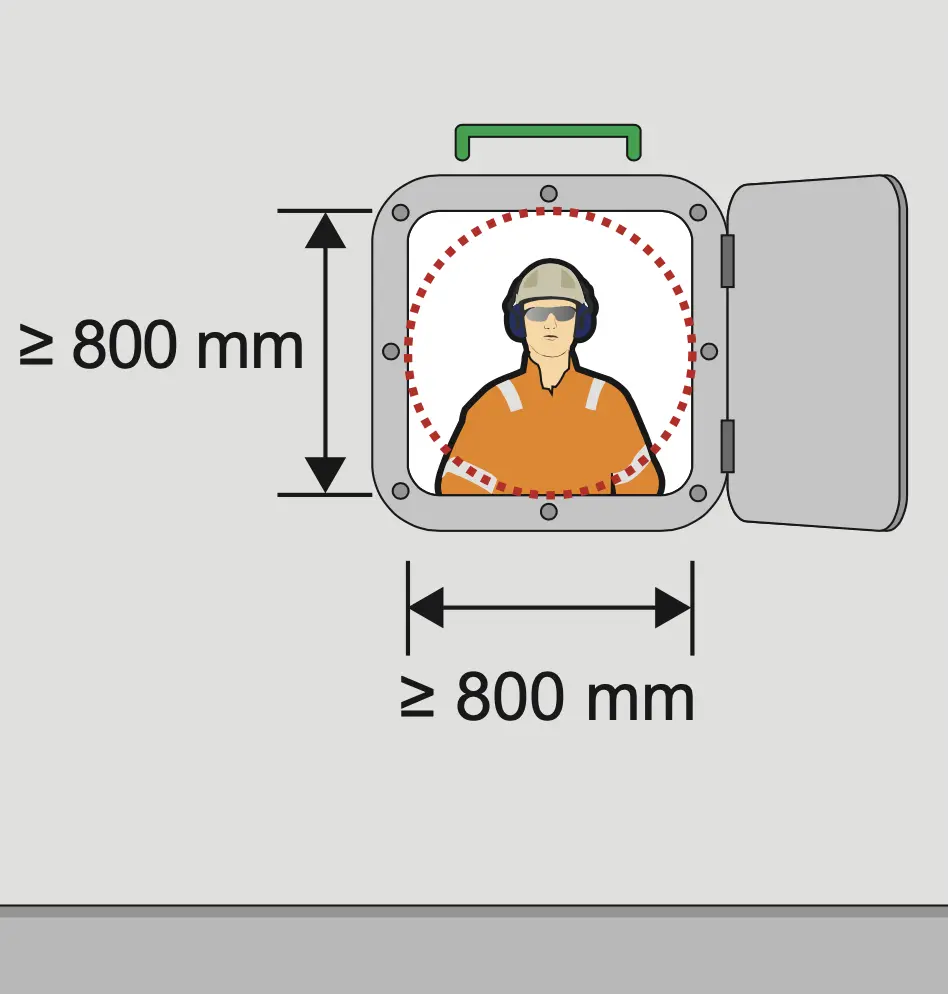

Min. 800 x 800 mm

Tanks, cofferdams etc: Min. 600 x 600 mm

Manhole: Min. Ø 600 mm

Handhole: Min. Ø 200 mm

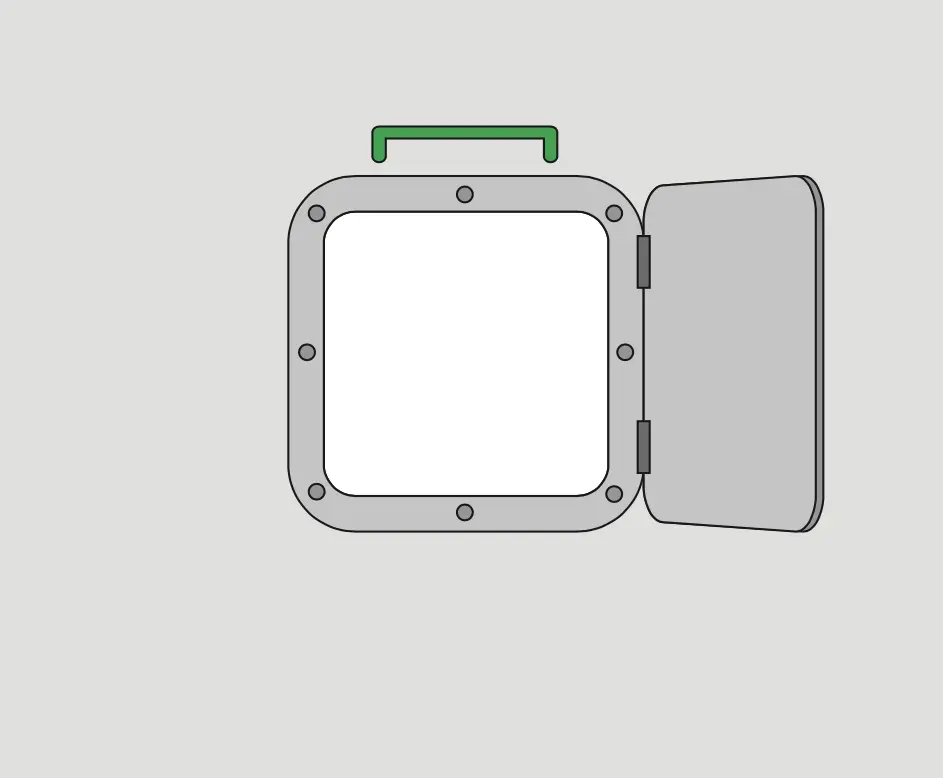

Access openings in vertical partitions shall have handgrips on both sides (inside and outside) above the opening.
